THE PENTIUM DIVISION FLAW


by

David W. Deley

©1995



INTRODUCTION

The following paper describes the details behind the floating point division bug in the hardware divide unit of Intel Corporation's Pentium(TM) processor. The Pentium is Intel's next generation of IBM-PC compatible microprocessors following the i486 CPU family. The original Pentium processor was introduced into the market in May of 1993, and an estimated two million were sold. A year later it was discovered that in certain very rare instances a division operation returned a result that was slightly incorrect.



Intel corrected the bug in June of 1994, and any new Pentium computer sold after January of 1995 probably has the newer corrected chip in it. Intel will also replace upon request any Pentium chip which has the floating point division flaw with a new one, just ask. I myself have never bothered replacing my flawed Pentium chip. The flaw is too insignificant to affect everyday users like myself. All my software runs just fine with no problems, and quite fast I might add. Actually that part about no problems is a lie -- I have endless problems with bugs in software for IBM-PC compatible computers, but none of the bugs are the result of the Pentium's floating point division flaw explained here.



For most people the flaw itself is just an entertaining curiosity since it's rare and the error in precision when it does occur is small. The flaw does arouse one's curiosity though, and it is quite interesting to study the details behind the flaw, as it brings together many aspects of computer science. Like any technical field, computer science can be made easy to understand, or it can be made difficult to understand. I hope most people find this paper easy to understand.



-David W. Deley    June 1995



CONTENTS:

INTRODUCTION

CHAPTER 1:   REVIEW
1.1  INTERPRETING THE VALUE OF A DECIMAL NUMBER
1.2INTERPRETING THE VALUE OF A BINARY NUMBER
1.3MOVING THE DECIMAL POINT OF A BASE 10 NUMBER
1.4MOVING THE RADIX POINT OF A BINARY NUMBER
1.5NORMALIZED NOTATION: BASE 10
1.6NORMALIZED NOTATION: BASE 2
1.7DIVISION NOMENCLATURE
1.8DIVISION OF NORMALIZED NUMBERS: BASE 10
1.9DIVISION OF NORMALIZED NUMBERS: BASE 2
1.10PENTIUM REPRESENTATION OF FLOATING POINT NUMBERS
1.11CARRY-SAVE ADDITION
1.12PARTIAL ADDITION

CHAPTER 2:   REVIEW
2.1  EXAMPLE
2.2ABSTRACT DIVISON
2.3THE ITERATIVE FORMULA FOR DIVISON
2.4BOUNDS ON RESULTING REMAINDER
2.5LOOKUP TABLE
2.6NEGATIVE QUOTIENT DIGITS

CHAPTER 3:   REVIEW
3.1  THE SRT DIVISION ALGORITHM
3.2THE ITERATIVE FORMULA FOR DIVISION BASE 4
3.3BOUNDS ON RESULTING REMAINDER

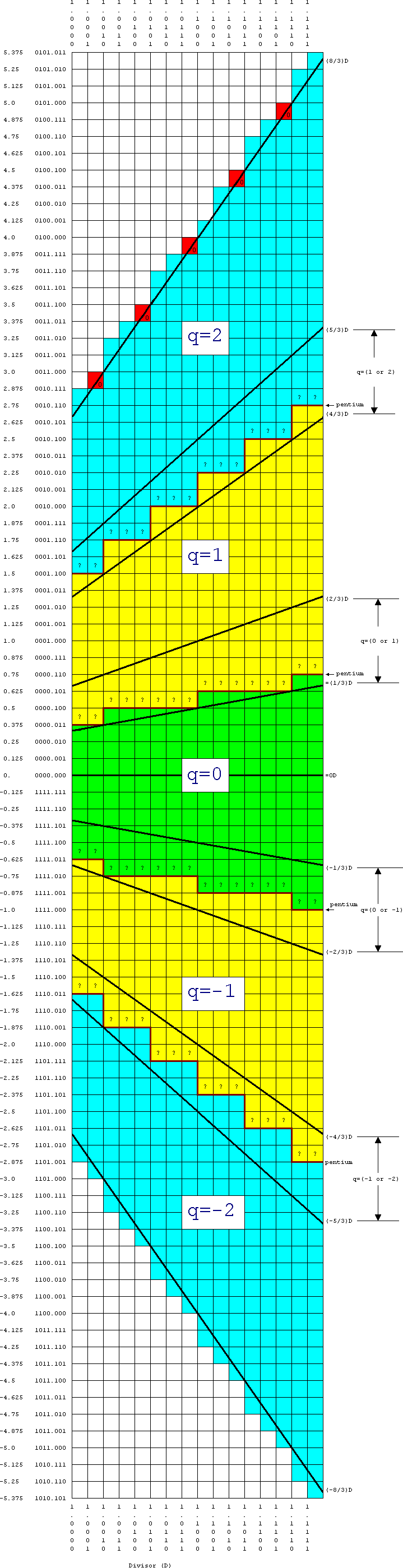

3.4THE PENTIUM LOOKUP TABLE (P-D PLOT)
3.5ITERATION USING THE P-D PLOT AS A LOOKUP TABLE

CHAPTER 4  EXAMPLE OF BUG

CHAPTER 5OBSERVATIONS ON HITTING THE ERROR CELL

CHAPTER 6TOPICS FOR FURTHER STUDY

CHAPTER 7HISTORY OF THE BUG'S DISCOVERY

CHAPTER 8HOW TO TEST FOR THE PENTIUM BUG

CHAPTER 9PENTIUM JOKES

REFERENCES


The Pentium division Flaw - Chapter 1
CHAPTER 1: REVIEW

Here we briefly review some simple concepts you probably already know.



1.1    INTERPRETING THE VALUE OF A DECIMAL NUMBER:
(100)ones--+ +--tenths(10-1)
(101)tens-+||+-hundredths(10-2)
(102)hundreds+||||+thousandths(10-3)
||| |||
419.583
^-decimal point





1.2    INTERPRETING THE VALUE OF A BINARY NUMBER:
(20)ones---+ +---halves(1/2)
(21)twos--+||+--fourths(1/4)
(22)fours-+||||+-eighths(1/8)
(24)eights+||||||+sixteenths(1/16)
|| || ||||
1011.1011
^-radix point





1.3    MOVING THE DECIMAL POINT OF A BASE 10 NUMBER:
Given an ordinary decimal number such as

14.195835

we can move the decimal point to the right or left by multiplying or dividing by powers of ten. For example, to move the decimal point right two places, we multiply by 102 = 100

14.195835 * 100 = 1419.5835





1.4    MOVING THE RADIX POINT OF A BINARY NUMBER:
Given an ordinary binary number such as

1011.1011

we can move the radix point to the right or left by multiplying or dividing by powers of two. For example, to move the decimal point right two places, we multiply by 22 = 4

1011.1011 * 4 = 101110.11





1.5    NORMALIZED NOTATION: BASE 10
Given an ordinary decimal number such as

14.195835

we can move the decimal point so it lies directly after the first digit by multiplying or dividing by an appropriate power of 10. In our example:

14.195835 = 1.4195835 * 101
mantissaexponent

In this representation 1.4195835 is called the mantissa, and 101 is called the exponent.





1.6    NORMALIZED NOTATION: BASE 2
Given an ordinary binary number such as

1011.1011

we can move the radix point so it lies directly after the first digit by multiplying or dividing by an appropriate power of 2. In our example:

1011.1011 = 1.0111011 * 23
mantissaexponent

In this representation 1.0111011 is called the mantissa, and 23 is called the exponent.





1.7    DIVISION NOMENCLATURE

               dividend    numerator                        12
    quotient = -------- = -----------         Example:  3 = --
               divisor    denominator                        4


                             quotient                         3
                           +---------         Example:     +---
                   divisor | dividend                    4 | 12




1.8    DIVISION OF NORMALIZED NUMBERS: BASE 10

Given any two decimal numbers that we wish to divide, such as:

                    14.195835
                   ----------
                   119.716320

we can normalize the values using exponential notation to obtain:


        1.4195835 * 101      1.4195835   101      1.4195835
       -----------------  =  ---------- * ----  =  ---------- * 10(1-2)
       1.19716320 * 102     1.19716320   102     1.19716320


Thus the problem has been reduced to the division of two normalized numbers followed by a shifting of the decimal point.




1.9    DIVISION OF NORMALIZED NUMBERS: BASE 2
Given any two binary numbers that we wish to divide, such as:

                   1011.1011
                   ---------
                   11.001000


we can normalize the values using exponential notation to obtain:

       1.0111011 * 2^3     1.0111011   2^3     1.0111011
       ---------------  =  --------- * ---  =  --------- * 2(3-1)
       1.1001000 * 2^1     1.1001000   2^1     1.1001000

Thus the problem has been reduced to the division of two normalized numbers followed by a shifting of the radix point.

The important point to note is that any division operation can be reduced to dividing normalized mantissas. The exponents and signs can be handled separately.




1.10    PENTIUM REPRESENTATION OF FLOATING POINT NUMBERS

The Pentium uses IEEE standard 594 for representing floating point numbers. In this standard a single precision floating point variable is represented using a 24 bit mantissa and an exponent which can take on values between +127 and -126.



The Pentium also uses two's compliment notation to represent negative numbers. A positive number is negated by complementing all the bits (one's complement, i.e. "flip the bits") and then adding 1 to the result.






1.11    CARRY-SAVE ADDITION

Carry-Save addition is a method of quickly reducing the sum of three variables A, B, and C, down to the sum of two variables PARTIAL_SUM and CARRY, using only bitwise logical operations (AND, OR, Exclusive-OR). With Carry-Save addition we operate on all of the columns at once, placing the partial sum of that column at the bottom, and saving any overflow as a carry digit at the top. The bottom is our PARTIAL_SUM, and the carry digits at the top become our CARRY. The true sum of (A + B + C) is thus reduced to the sum (PARTIAL_SUM + CARRY).



EXAMPLE #1:

          CARRY= 0010.1100010
                  ------------
                A=101.11010011
                B=001.01100110                CARRY= 0010.1100010
                C=000.01100000          PARTIAL_SUM=  100.11010101
                  ------------                       -------------
     PARTIAL_SUM= 100.11010101                TOTAL= 0111.10011001


Note that:

     PARTIAL_SUM = (A ^ B ^ C)
     CARRY       = (A & B) | (A & C) | (B & C)

                    ^  represents Exclusive-OR
                    &  represents AND
                    |  represents OR


Thus both PARTIAL_SUM and CARRY are calculated quickly using nothing but bitwise logical operations.






1.12    PARTIAL ADDITION:

The one drawback to Carry-Save addition is if we want to know the true sum of (A + B + C) we still have to add (PARTIAL_SUM + CARRY), and this can take time. The classic method of adding two numbers is to start with the right most column and add it up, placing the partial sum for that column below and any overflow as carry digits above the next column to the left. Then move left one column and repeat. Continue in this manner, adding one column at a time, until all the columns have been added and the calculation is complete. This method of addition is slow since each number may have 64 bits, and we must loop through all of the columns, working on only one column at a time, propagating the overflow on to the next column as carry bits.



However, it may be that we don't need an exact answer but that an approximate answer will do fine. We can get an approximate answer by adding just the first few columns and ignoring the rest. For Example, we can calculate an approximate answer to example #1 above by considering just the first 7 columns:



         CARRY= 0010.110
   PARTIAL_SUM=  100.110
                -------------
  approx total= 0111.100

Here our total is approximate, but it is very close to the actual answer. In this case the total dropped down from the true answer to the first integral multiple of 0.001 below the true answer.





Consider now example #2 below which shows a slightly different PARTIAL_SUM and CARRY. Notice the actual sum is identical to the sum we had before, but the approximate total obtained by adding the first seven bits only is lower this time:



EXAMPLE #2:

         CARRY= 0010.1011101               CARRY= 0010.101
   PARTIAL_SUM=  100.11011111        PARTIAL_SUM=  100.110
                -------------                     -------------
  actual total= 0111.10011001       approx total= 0111.011


This time our approximate total dropped down to the second integral multiple of 0.001 rather than the first integral multiple as it did before. The difference is in example #1 the sum of the truncated parts is less than 0.001, whereas in example #2 the sum of the truncated parts is greater than 0.001:




     Example #1:                          Example #2:
                       |truncated                           |truncated
                       |part                                |part
                       |                                    |
         CARRY=     .   0010                  CARRY=     .   1101
   PARTIAL_SUM=     .   10101           PARTIAL_SUM=     .   01111
                -------------                        -------------
         TOTAL=     .___11001                 TOTAL=     .__101001


Mathematically our approximate total is equal to the true total minus the sum of the truncated parts:




    approx total = total - (sum of truncated parts)


Consider now a worst case scenario in which all the truncated bits are 1's. Convince yourself that even in this case the sum of the truncated parts will always be less than (2 x 0.001). Consider now the other extreme scenario where all the truncated bits are 0's. Convince yourself that in this trivial case the sum of the truncated parts is 0.




We have thus determined the bounds on our approximate total:




     total >= approx total > total - (2 x 0.001)


Our approximate total will always be equal to or lower than the true answer, and the error will always be less than (2 x 0.001). This is a crucial result so make sure you understand it.






CHAPTER 2:    DIVISION



2.1    EXAMPLE
Recall how we divide by hand:


                                <-- quotient
                   +---------
                 3 | 7.203125   <-- Dividend (starting Remainder R)
                 |
        Divisor (D)


Step 1.
Choose a quotient digit:

            +-- quotient digit q
            2
          +---------
        3 | 7.203125


Step 2.
Multiply quotient digit by Divisor.
Subtract result from Remainder to get New Remainder:


            2
          +---------
        3 | 7.203125  <-- Remainder R
            6         <-- (2 * 3 = 6)
           ---------
            1.203125  <-- New Remainder R


Step 3.
To prepare for the next iteration, move the decimal point right one
place (multiply by 10):


            2
          +---------
        3 | 7.203125
            6
           ---------
            1.203125  <-- New Remainder R
            ========
            12.03125  <-- R = 10 * R



At this point our remainder R must be within the following acceptable limits:

        0 <= R < 10*D     ( D = Divisor, 3 in this example)


If the remainder R is below zero, then the quotient digit we chose in step 1 was too high. If R is greater than or equal to 10*D, then the quotient digit we chose in step 1 was too low.


2.2    ABSTRACT DIVISON

We now repeat those three steps above for division in a more general abstract setting:



    q    - quotient digit
    D    - Divisor
    R[j] - Remainder after the j'th iteration.
           (The starting remainder R[0] is the Dividend.)


                        +---------
                      D | R[j]      <-- Remainder
                     /
              Divisor


Step 1.
Choose a quotient digit:


            +-- quotient digit q
            q
          +---------
        D | R[j]


Step 2.
Multiply quotient digit by Divisor.
Subtract result from Remainder to get New Remainder:


            q
          +---------
        D | R[j]
           -qD
           ---------
            Rnew[j]   <-- Rnew[j] = (R[j] - qD)


Step 3.
To prepare for the next iteration, move radix point right one place. (In base 10 the radix point is more familiarly known as the decimal point, and we multiply by 10. In base 4, which the Pentium uses for division, we multiply by 4.)


            q
          +---------
        D | R[j]
           -qD
           ---------
            Rnew[j]   <-- Rnew[j] = (R[j] - qD)
            ========
            R[j+1] = base * Rnew[j]   (base = 10 for decimal
                                               4 for radix 4)



Repeat the above 3 steps until the desired number of quotient digits have been calculated.


2.3    THE ITERATIVE FORMULA FOR DIVISON
Note steps 2 and 3 can be combined to give the following iterative formula (this is THE iterative formula for performing division that we will be referencing throughout the rest of this paper):

    R[j+1] = base * (R[j] - q[j]*D)



2.4    BOUNDS ON RESULTING REMAINDER
Note that the minimum we can make the final quotient answer at this point in the iteration is to have all subsequent quotient digits be the smallest quotient digit possible. Likewise the maximum we can make the final quotient answer at this point in the iteration is to have all subsequent quotient digits be the largest quotient digit possible. From this observation we can conclude that our remainder R[J=1] at this point must be within the following range:

    (D * n.nnnnn...) <= R[j+1] < (D * m.mmmmm...)

    where:  n = lowest quotient digit we can use
            m = highest quotient digit we can use


If our remainder R[j+1] at this point is less than (D * n.nnnnn...), then the correct quotient answer is less than the minimum we can make our final quotient answer. Likewise if our remainder R[j+1] at this point is greater than (D * m.mmmmm...) then the correct quotient answer is greater than the maximum we can make our final quotient answer. In the first instance our quotient answer will always be too high; in the second instance our quotient answer will always be too low.


2.5    LOOKUP TABLE
To aid us in determining what quotient digit to choose at each iteration we can make ourselves a table showing remainder R[j] vs. divisor D. Here is a simple table for doing base 10 (decimal) division:

                      9 | 9 4 3 2 1 1 1 1 1
                      8 | 8 4 2 2 1 1 1 1 0
                      7 | 7 3 2 1 1 1 1 0 0
                      6 | 6 3 2 1 1 1 0 0 0
             Current  5 | 5 2 1 1 1 0 0 0 0
            Remainder 4 | 4 2 1 1 0 0 0 0 0
                      3 | 3 1 1 0 0 0 0 0 0
                      2 | 2 1 0 0 0 0 0 0 0
                      1 | 1 0 0 0 0 0 0 0 0
                      0 +------------------
                        0 1 2 3 4 5 6 7 8 9

For example if we have a divisor of 3 and a current remainder of 7, we can look at our table and see that 2 is the correct next quotient digit to choose. The Pentium uses a table such as this to determine what quotient digit to choose next. The bug is some of the table entries are incorrect. We'll look more closely at the Pentium's lookup table in a moment.


2.6    NEGATIVE QUOTIENT DIGITS
We now introduce one last concept which may seem confusing at first but it's actually fully legitimate and it results in a faster computer division implimentation, which of course is the whole point. For our base 10 division examples above we have implicitly restricted our quotient digits to the usual set {0,1,...,8,9}. Consider what would happen now if we allowed our quotient digits to also be negative, {-9,-8,...,8,9} This would allow for some numbers to be represented in more than one way. For example (using a bar over a number to represent negation):

              _
        16 = 24   (i.e. 1*10 + 6 = 2*10 + -4)




CHAPTER 3:    RADIX 4 SRT DIVISION


3.1    THE SRT DIVISION ALGORITHM
The SRT division algorithm was named after the 3 scientists who discovered it independently at about the same time: D. Sweeney of IBM, J.E. Robertson of the University of Illinois, and T.D. Tocher of the Imperial College of London.

The Pentium uses a Radix 4 SRT Division algorithm for floating point divisions. It's simply the division we've been doing above, except it's done in base 4, and the quotient digits we can choose are {-2,-1,0,1,2}.

(I think the reason we don't include 3 and -3 as possible quotent digits is because hardware to implement multiplies by anything other than a power of 2 is very expensive both in chip area and time. Multiplications by positive and negative powers of two are just shifts and inverts. Having radix 4 and the possible quotient digits of {-2,-1,0,1,2} meet the multiplication criteria nicely.)



3.2    THE ITERATIVE FORMULA FOR DIVISION BASE 4
Our iterative formula for base 4 is:

        R[j+1] = 4 * (R[j] - q[j]*D)                (3-1)



3.3    BOUNDS ON RESULTING REMAINDER
At the beginning of each iteration we must choose a quotient digit which will result in the next remainder R[j+1] being within the acceptable limits of:

             _ _____
        (D * 2.22222...) < R[j+1] < (D * 2.22222...)
             [base 4]                    [base 4]
                _
        where:  2 = lowest quotient digit we can use (-2)
                2 = highest quotient digit we can use

Using a little calculus we can show that:

           2.22222... (base 4) = 8/3 (decimal)

   Proof:  2.22222... = 2*(x0 + x1 + x2 + x3 +...)    [x = 1/4]
           (base 4)     (decimal)

                          Recall from calculus if |x| < 1 then:

                                                           1
                          (x0 + x1 + x2 + x3 +...) = -----
                                                         1 - x

                                1       8
                      =  2 * ------- = ---
                             1 - 1/4    3
   Q.E.D.


Similarly, it can be show that:

        _ _____
        2.22222... (base 4) = -8/3 (decimal)

Our restriction on the remainder R[j+1] thus becomes:

        (D * -8/3) < R[j+1] < (D * 8/3)


Substituting Eq. (3-1) for R[j+1] gives:

        (-8/3)*D  <  4*(R[j] - qD)  <  (8/3)*D          (3-2)

Given a remainder R[j] at the beginning of an iteration, we can now determine what values of q will satisfy the above restraint.

    FOR q=+2        (-8/3)*D < 4*(R[j] - 2*D) < (8/3)*D
    becomes:         (4/3)*D <    R[j]        < (8/3)*D

We may thus choose quotient digit 2 when our remainder R[j] is between (4/3)*D and (8/3)*D.

    FOR q=+1:       (-8/3)*D < 4*(R[j] - 1*D) < (8/3)*D
    becomes:         (1/3)*D <    R[j]        < (5/3)*D

We may thus choose quotient digit 1 when our remainder R[j] is between (1/3)*D and (5/3)*D.

FOR q=0: (-8/3)*D < 4*(R[j] - 0*D) < (8/3)*D becomes: (-2/3)*D < R[j] < (2/3)*D
We may thus choose quotient digit 0 when our remainder R[j] is between (-2/3)*D and (2/3)*D.

    FOR q=-1:       (-8/3)*D <4*(R[j] - (-1)*D) < (8/3)*D
    becomes:        (-5/3)*D <    R[j]          < (-1/3)*D

We may thus choose quotient digit -1 when our remainder R[j] is between (-5/3)*D and (-1/3)*D.

    FOR q=-2:       (-8/3)*D < 4*(R[j] - (-2)*D) < (8/3)*D
    becomes:        (-8/3)*D <    R[j]           < (-4/3)*D


We may thus choose quotient digit -2 when our remainder R is between (-8/3)*D and (-4/3)*D.

Notice there is some overlap in the choices of q:
If R is between (5/3)*D and (4/3)*D we can choose either q=2 or q=1.
If R is between (2/3)*D and (1/3)*D we can choose either q=1 or q=0.
If R is between (-1/3)*D and (-2/3)*D we can choose either q=0 or q=-1.
If R is between (-4/3)*D and (-5/3)*D we can choose either q=-1 or q=-2.


3.4    THE PENTIUM LOOKUP TABLE (P-D plot)
The above information leads to the following plot, called the Partial remainder vs. Divisor plot, or P-D plot for short. Dividing the plot up into cells generates a lookup table that we can use to aid us in choosing the next quotient digit q given the current remainder R[j]. The divisions up the vertical axis are 0.001 [binary] apart, representing R[j] values. The divisions across the horizontal axis are 0.0001 [binary] apart, representing Divisor values. (The divisor values range from 1 to 1.11111..., since a normalized divisor mantissa will always be in this range).

There are five red cells marked with a 0 near the top of the graph running along the (8/3)D line. These are the error cells that should specify a quotient digit of 2, but instead specify a quotient digit of 0. Selecting a quotient digit of 0 when R[j] is within this range is unacceptable -- the digit value is too low, and no matter what subsequent quotient digits are chosen the total quotient answer will always be lower than the correct answer from this point on. This is the Pentium flaw. Those five cells failed to get the proper value loaded into them when Intel made the chip.

These 5 error cells are very rarely used being positioned where they are and with less than half of each error cell actually below the (8/3)D line. It is also impossible to hit any of these error cells early on in the divison process, so even if an error cell is encountered the generated result will still be close to the correct answer.

THE PENTIUM P-D PLOT:

PD Plot

Let's look at this graph for a moment. There are diagonal lines (8/3)D, (5/3)D, (4/3)D, (2/3)D, (1/3)D, (-1/3)D, (-2/3)D, (-4/3)D, (-5/3)D, (-8/3)D. These lines would pass through the origin if we extended the graph to the left. These are the theoretical boundaries discussed above.

Above (8/3)D is out of bounds. If we ever end up there, something has gone wrong. The Pentium returns a value of q=0 if we ever hit this area.

Between (8/3)D and (5/3)D we must have q=2. Each cell which is in or partly overlaps this area must have the value 2. The five red error cells marked with have a value of 0 instead of 2.

Between (5/3)D and (4/3)D we can have either q=2 or q=1. The actual division line (as best as we know) is the staircase line drawn in brown. Cells above that staircase shaded light blue have q=2, cells below that staircase shaded yellow have q=1. Cells immediately above the division line, marked with a '?', are cells which might return either q=2 or q=1 depending upon other factors that will be discussed in chapter 4. [2004—I apologize, I no longer remember the reason for the '?' in these cells, and chapter 4 doesn't explain them. Chapter 4 does explain why every cell must return a value suitable also for the cell directly above it. The dividing lines shown here I believe are from Tim Coe's Source Code.]

Between (4/3)D and (2/3)D we must have q=1. Each cell which is in or partly overlaps this area must have the value 1.

Between (2/3)D and (1/3)D we can have either q=1 or q=0. The actual division line (as best as we know) is the staircase line drawn in brown. Cells above that staircase have q=1, cells below that staircase have q=0. Cells immediately above the division line, marked with a '?', are cells which might return either q=1 or q=0 depending upon other factors that will be discussed in chapter 4.

Between (1/3)D and (-1/3)D we must have q=0. Each cell which is in or partly overlaps this area must have the value 0.

Between (-1/3)D and (-2/3)D we can have either q=0 or q=-1. The actual division line (as best as we know) is the staircase line drawn in brown. Cells above that staircase have q=0, cells below that staircase have q=-1. Note this division staircase is not a mirror image of the one in the positive plane, but is instead shifted down by two cells. Cells immediately above the division line, marked with a '?', are cells which might return either q=0 or q=-1 depending upon other factors that will be discussed in chapter 4.

Between (-2/3) and (-4/3) we must have q=-1. Each cell which is in or partly overlaps this area must have the value -1.

Between (-4/3)D and (-5/3)D we can have either q=-1 or q=-2. The actual division line (as best as we know) is the staircase line drawn in brown. Cells above that staircase have q=-1, cells below that staircase have q=-2. Note again this division staircase is not a mirror image of the one in the positive plane, but is instead shifted down by two cells. Cells immediately above the division line, marked with a '?', are cells which might return either q=-1 or q=-2 depending upon other factors that will be discussed in chapter 4.

Between (-5/3)D and (-8/3)D we must have q=-2. Each cell which is in or partly overlaps this area must have the value -2. Note there are no error cells down here in the negative plane. The 5 error cells are all in the positive plane.

Below (-8/3)D is out of bounds. If we ever end up there, something has gone wrong. The Pentium returns a value of q=0 if we ever hit this area. (We actually do hit this area after hitting the error cell.)



3.5    ITERATION USING THE P-D PLOT AS A LOOKUP TABLE
The cells in the above graph define the lookup table used during the Pentium's SRT division process. The iteration goes something like this:

    Given:
    D - Divisor (note this value remains fixed)
    R - Dividend (initial Remainder)
Step 1:
Using D and R, look in P-D table above for next quotient digit q. Note that we need only know the first 4 digits after the radix point of the Divisor, and we need only know the first 3 digits after the radix point of the Remainder.

Step 2:
Do the math:
    R[j+1] = 4 * (R[j] - q*D)
Repeat steps 1 & 2 until enough quotient digits have been determined.





Intel Inside          Chapter 4
index
Back to Deley's Homepage
