DETERMINATION OF THE PARAMETERS FOR THE CART AND MOTOR

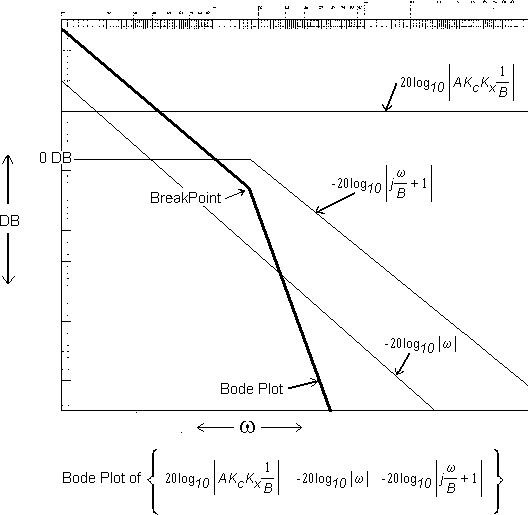

The first is a horizontal line at 0 DB. The second is a line of slope -20 DB/decade which crosses 0 DB at omega = B. We thus expect the Bode plot we obtain experimentally to be the sum of the three individual responses. We expect it to look something like the following:
